Nobeyama Radioheliograph Event 19990517_0453


EventID : 19990517_0453
Keyword : Flare
Start : 1999-05-17T04:50:42.000Z
Peak : 1999-05-17T04:53:46.000Z
End : 1999-05-17T05:23:28.000Z
Position: S15W73
Maximum Correlation @17GHz (x10^-4) : 1008
Maximum Brightness Temperature @17GHz : 2.4e+07
GOES:
NOAA Number:
Yohkoh HXT (L,M1,M2,H): (,,,)



(top panel) GOES plot.
(bottom panel) NoRH 17/34 GHz correlation plot; (white line) 17 GHz (yellow line) 34 GHz .


Full sun 17GHz image. The flare region is indicated by the solid box.
movie

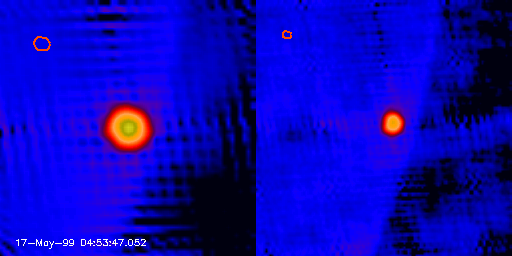

Partial 17/34GHz images. Color map shows brightness temperature, contour shows 17GHz (r-l)/(r+l) levels, where 'r' and 'l' indicates right- and left-handed circularly-polarized components, respectively. Field of View is 4096. x4096. arcsec
Contour levels of the thick lines are (r-l)/(r+l)=-0.1,-0.2,.. and those of the thin lines are (r-l)/(r+l)= +0.1,+0.2,...
Orange circle at top-left indicates the half-max. beam size
