Nobeyama Radioheliograph Event 20000120_0224


EventID : 20000120_0224
Keyword : Flare
Start : 2000-01-20T02:24:01.000Z
Peak : 2000-01-20T02:24:26.000Z
End : 2000-01-20T02:34:31.000Z
Position: N15W33
Maximum Correlation @17GHz (x10^-4) : 857
Maximum Brightness Temperature @17GHz : 1.5e+07
Area_src/Area_beam @17GHz : 2.7
Maximum flux @17GHz (SFU) : 187
Maximum flux @34GHz (SFU) : 89
Number of Impulsive fluctuation : 0
GOES:
NOAA Number:
Yohkoh HXT (L,M1,M2,H): (,,,)



(top panel) GOES plot.
(bottom panel) NoRH 17/34 GHz correlation plot; (white line) 17 GHz (yellow line) 34 GHz .

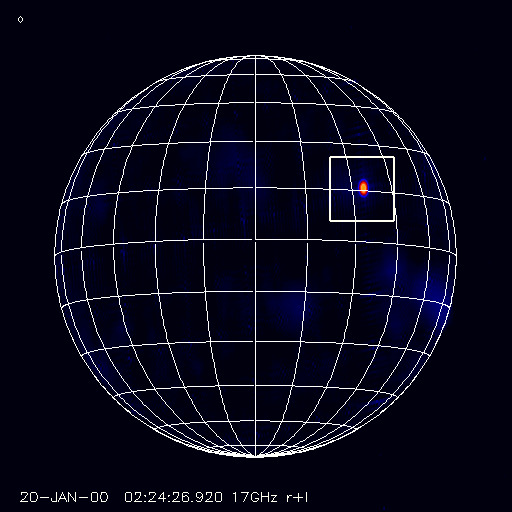

Full sun 17GHz image. The flare region is indicated by the solid box.
movie

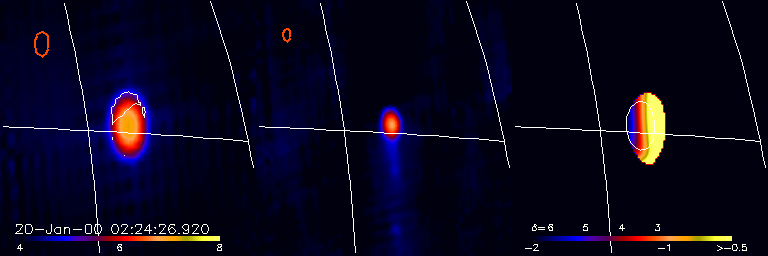

Partial 17/34GHz images. Color map shows brightness temperature, contour shows 17GHz (r-l)/(r+l) levels, where 'r' and 'l' indicates right- and left-handed circularly-polarized components, respectively. Field of View is 314. x 314. arcsec
Contour levels of the thick lines are (r-l)/(r+l)=-0.1,-0.2,.. and those of the thin lines are (r-l)/(r+l)= +0.1,+0.2,...
Orange circle at top-left indicates the half-max. beam size
